Description

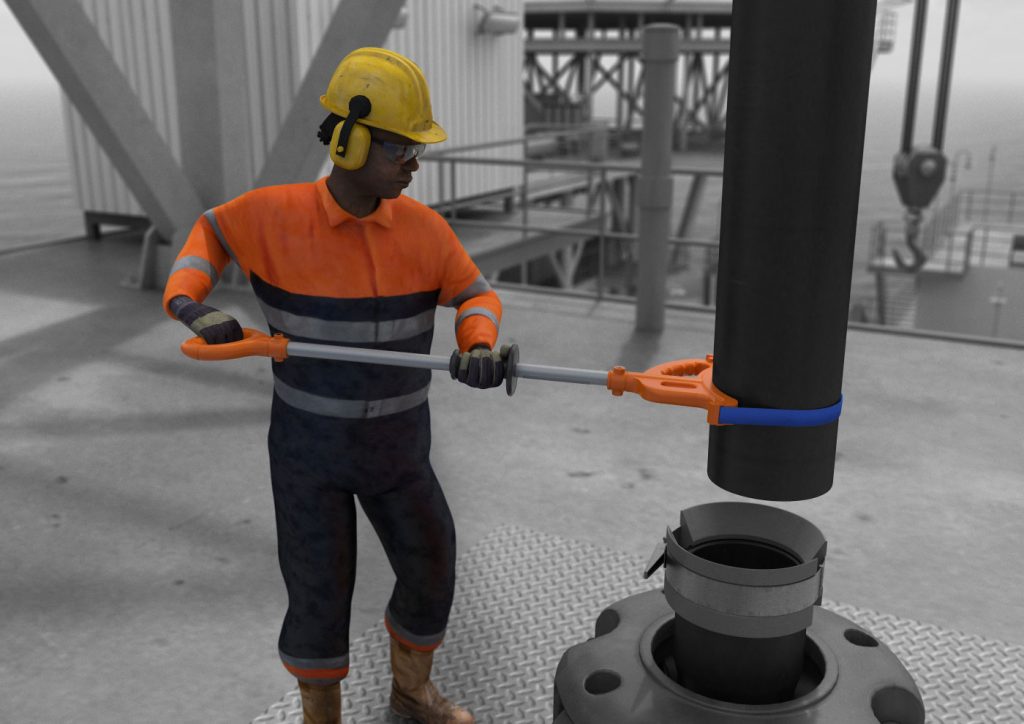

The OHS PRO Pipe Gripper Tool provides push-pull control of stationary suspended drill pipe, casing joints and hoses from 4 to 13 inches.
A replaceable rubber contact strap and cam buckle grip the tubular, while the MDPE handle, marine-grade aluminium shaft and tag-line hook support positioning and retrieval from a safer distance.
Key Features
- Working range from 4 to 13 inches

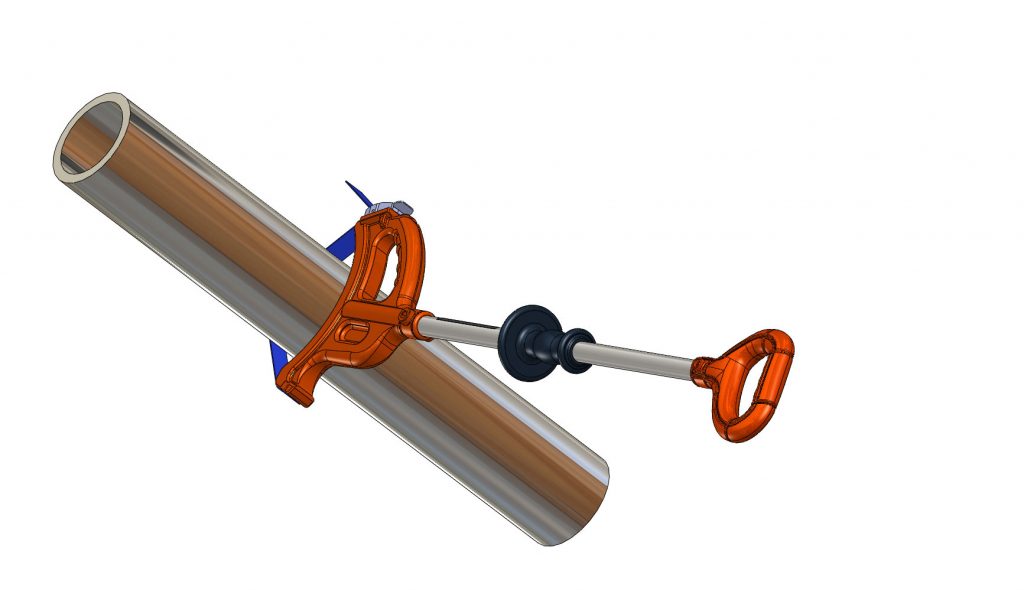

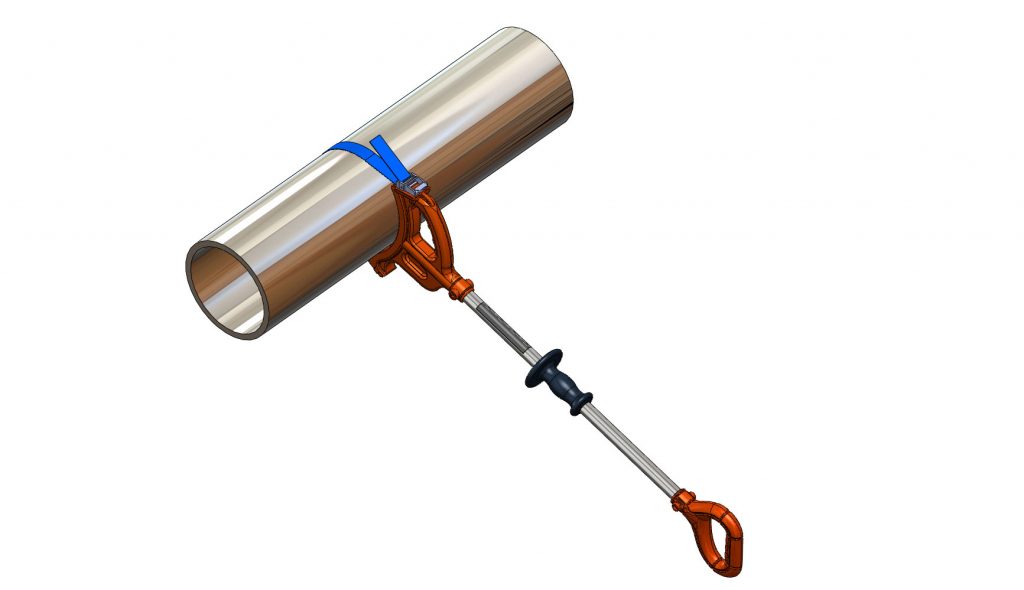

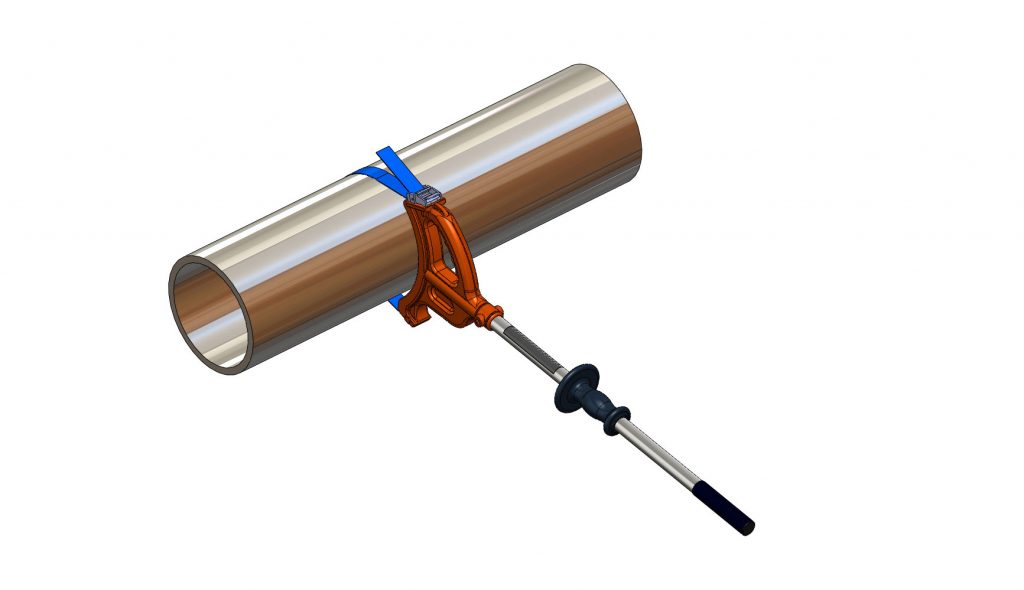

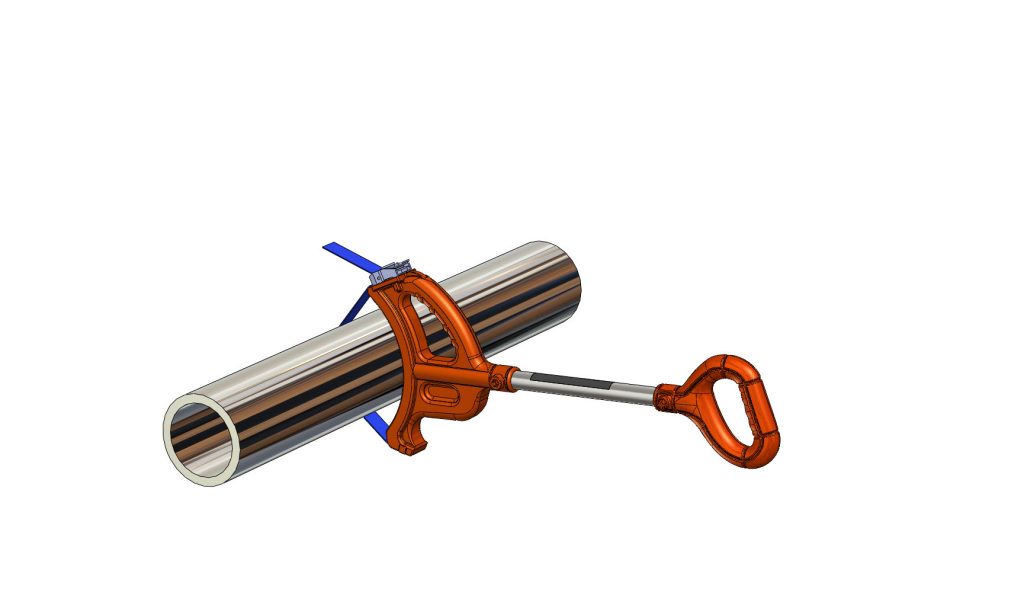

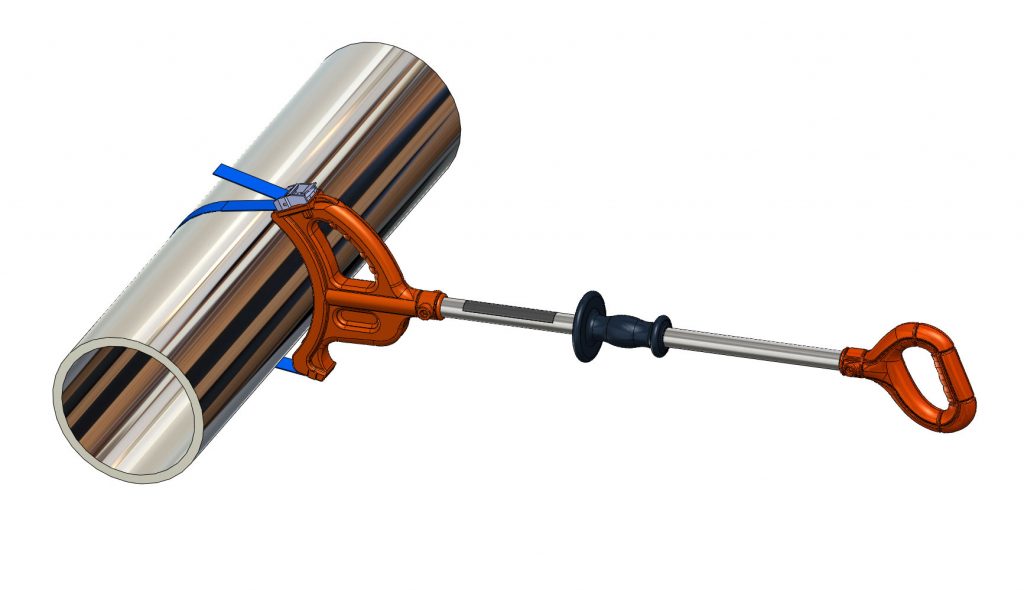

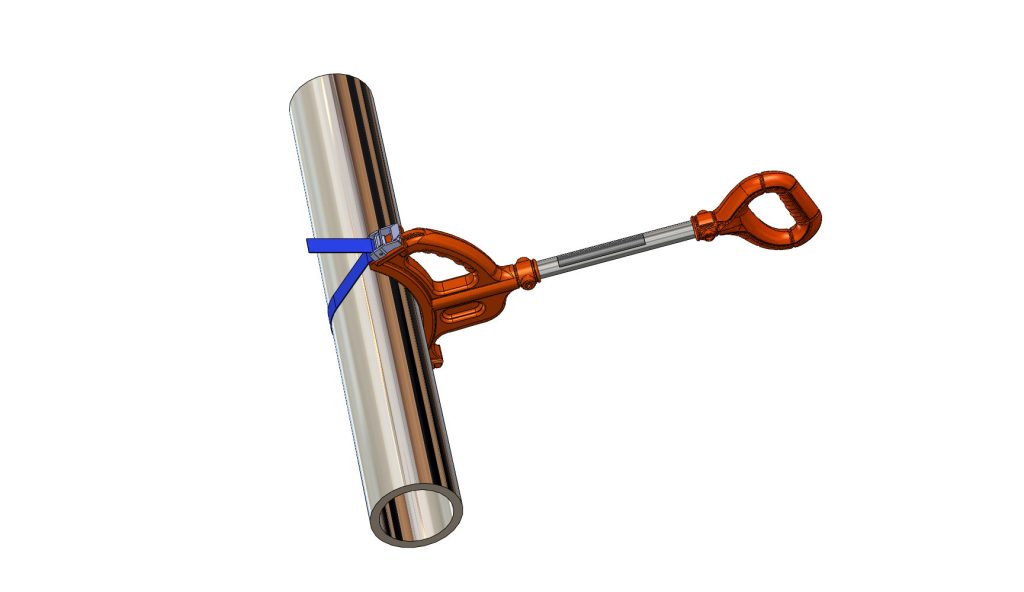

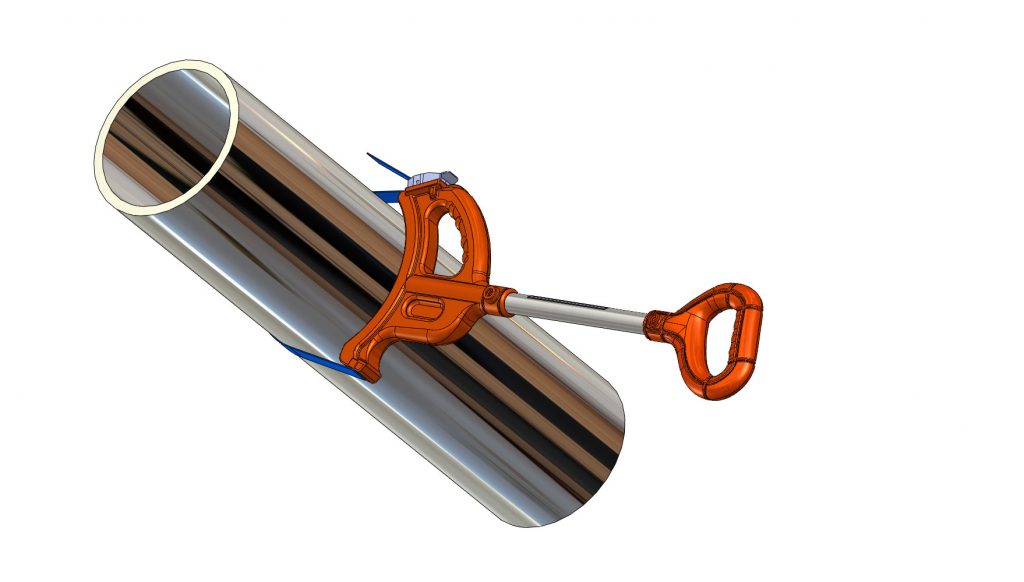

- Four enclosed- and open-handle configurations
- MDPE handle with 30 mm marine-grade aluminium shaft
- Replaceable rubber contact strap and cam buckle
- Integrated tag-line retrieval hook
Models and Specifications
| Product Name | Product Code | Hand Grip Style | Lengths |
|---|---|---|---|
| PRO Pipe Gripper Tool | PPGT18020 | Enclosed | 850mm |
| PPGT18021 | Enclosed | 1200mm | |
| PPGT18022 | Enclosed | 1500mm | |
| PPGT19022 | Open | 1500mm |
Applications
- Drill pipe and casing joints
- Large hoses and tubulars
- Controlled push-pull positioning
Safe Use
- Use only on stationary suspended loads and never stand beneath the load.
- Use two-person control for larger casing where required.
- Do not use for prying or levering.
- Component ratings are not a tool working load limit.
Product Documentation
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for the PRO Pipe Gripper Tool.
Please include the required product code, quantity and delivery location with your enquiry.
sales-usa@ckloosbrock.com
sales-europe@ckloosbrock.com
As the official stocking distributor for Offshore Handling Systems in the Americas, We maintain inventory ready to ship directly from our facility in Conroe, Texas.
