Description

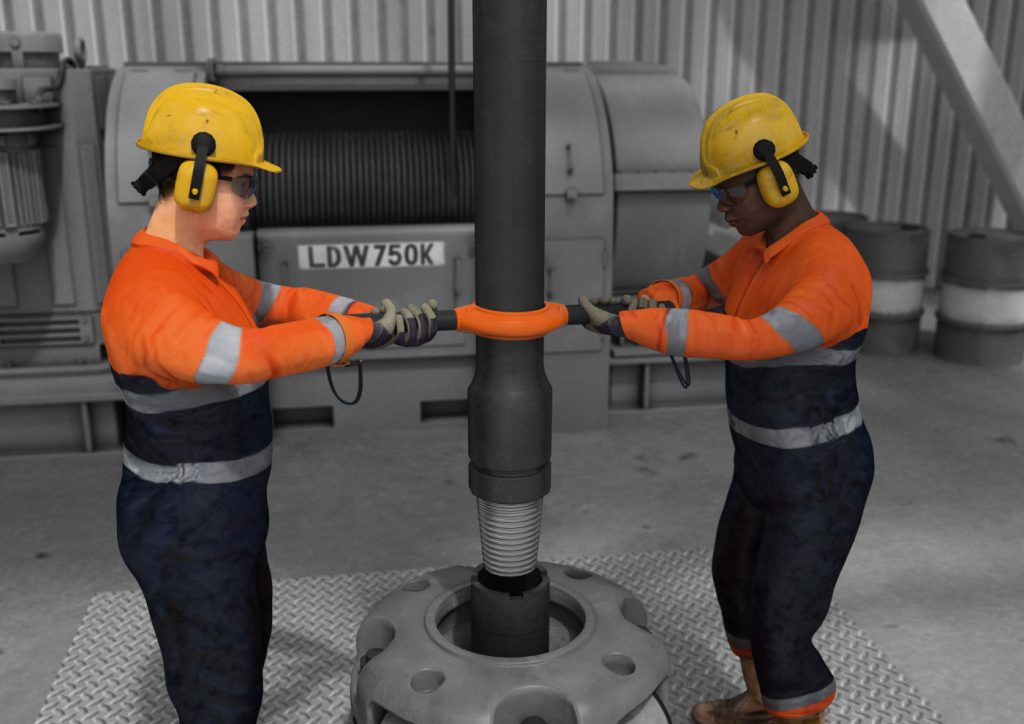

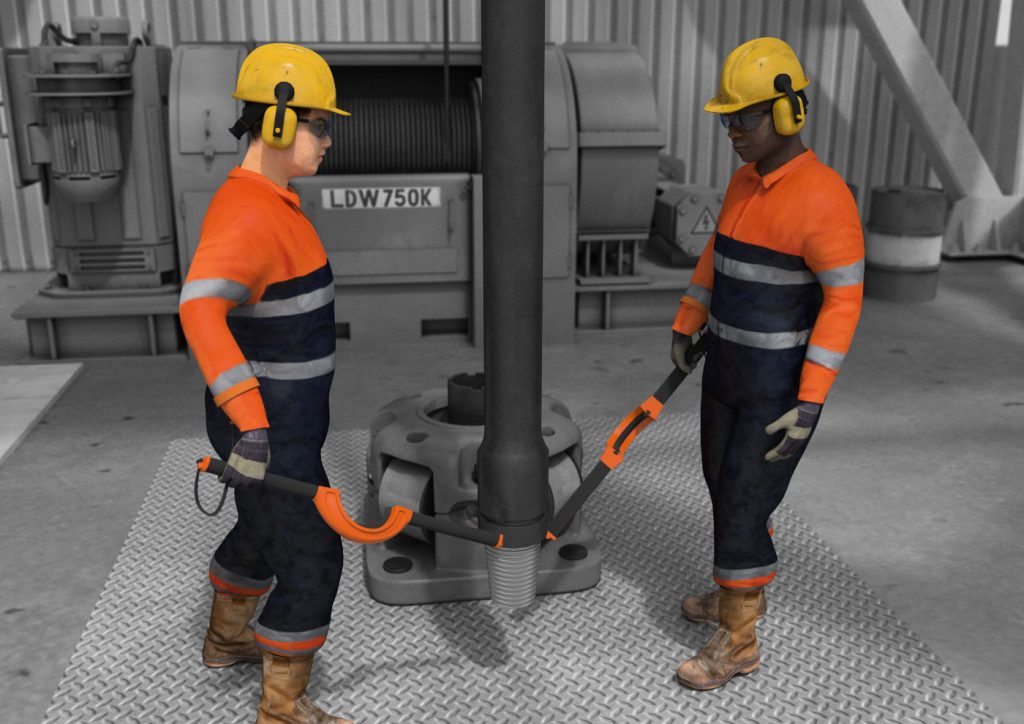

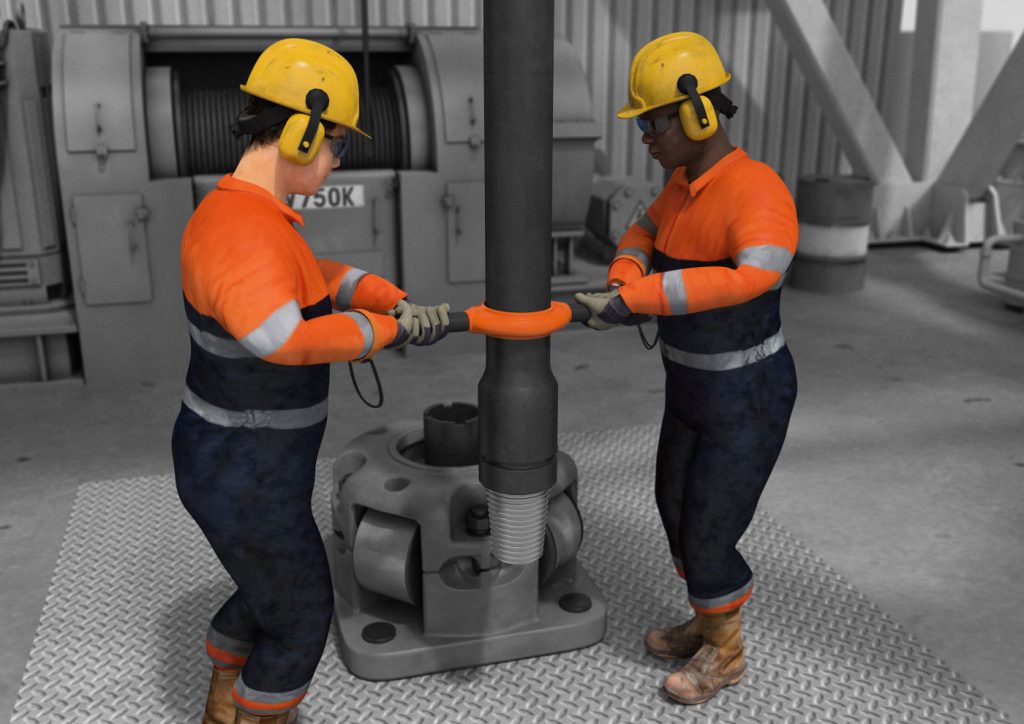

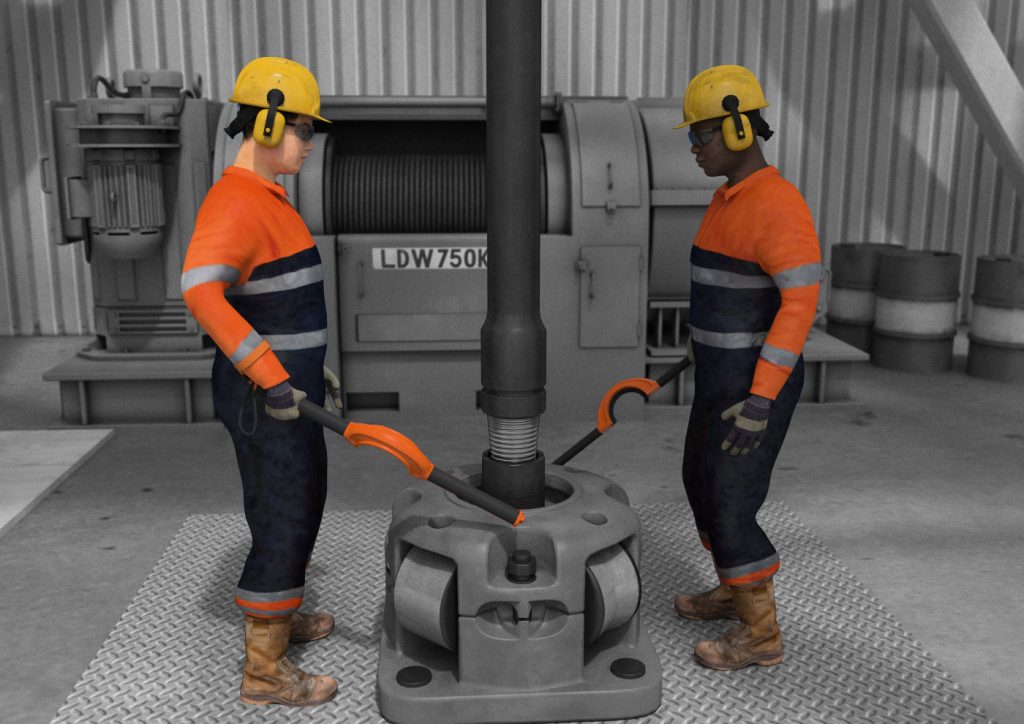

The OHS Drill Pipe Connection Guide supports two-person alignment of tubular connections from 2 3/8 to 5 7/8 inches while helping operators keep hands clear of the connection area.

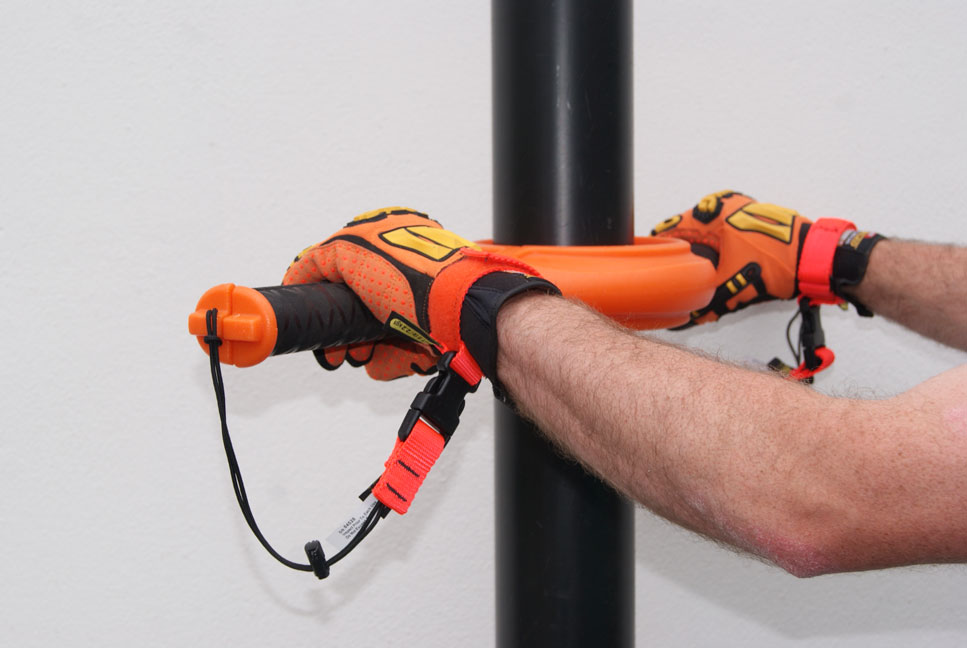

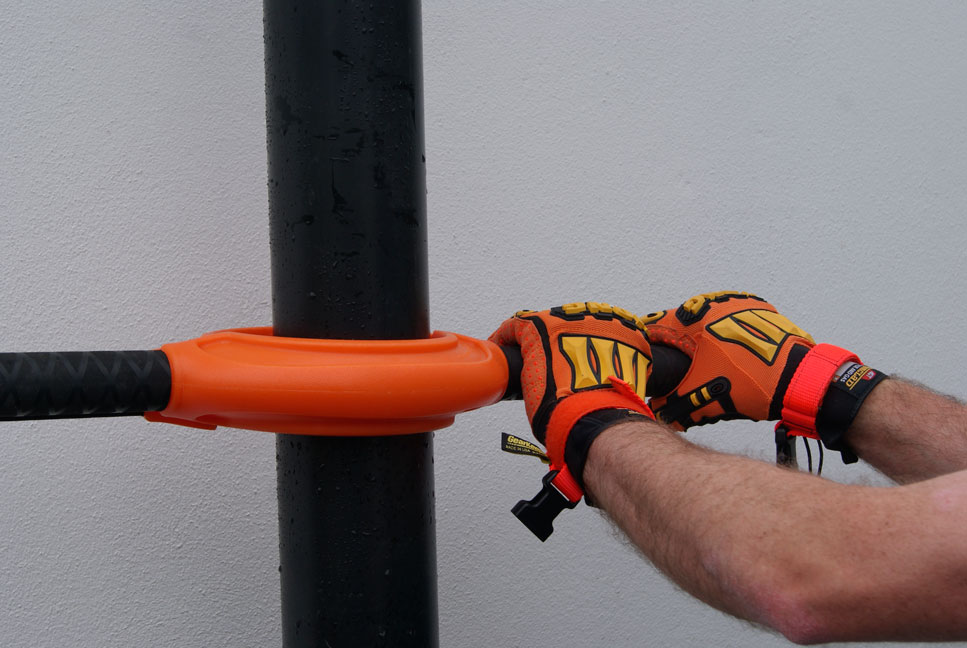

Two chemical-resistant rubber guide halves surround the pipe, with wipe seals and disconnecting wrist lanyards supporting controlled positioning and release.
Key Features
- Eight sizes covering 2 3/8 to 5 7/8-inch tubulars
- Two-part, two-person guide system
- Chemical-resistant rubber construction
- Integrated wipe seals
- Wrist lanyards designed to disconnect when required
Models and Specifications
| Product Name | Product Code | DRill Pipe Diameter |
|---|---|---|
| Drill Pipe Connection Guide | DPCG18009 | 5 7/8″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18010 | 5 1/2″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18011 | 5″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18012 | 4 1/2″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18013 | 4″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18014 | 3 1/2″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18015 | 3″ Drill Pipe |
| Drill Pipe Connection Guide | DPCG18016 | 2 3/8″ Drill Pipe |
Applications
- Drill pipe connection alignment
- Tubular stabbing and makeup support
- Rig-floor hands-free handling
Safe Use
- Use both guide halves with coordinated two-person handling.
- Keep hands outside the connection and pinch zones.
- Inspect the rubber, seals and lanyards before use.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for the OHS Drill Pipe Connection Guide.
Please include the required product code, quantity and delivery location with your enquiry.
